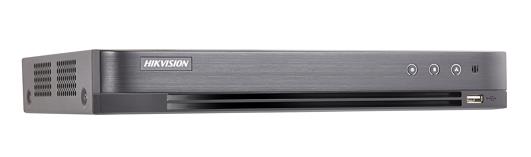

Name: Hikvision DS-7216HQHI-K2/P
SKU: DVRDS7216HQHI-K2/P
Price: 593.75 EUR
Availability: OutOfStock

Hikvision DS-7216HQHI-K2/P

€593.75

16 kanalų ir 2 HDD 1U DVR
H.265 pro+ suspaudimo technologija
5 įvesties signalai (HDTVI/AHD/CVI/CVBS/IP)
Galima prijungti H.265+/H.265/H.264+/H.264 IP kameras
Kodavimo galimybės iki 1080p @ 15 fps
Iki 4 MP (lite) įrašymo raiška
Prijungti galima Iki 24 kamerų
Perduoda HDTVI vaizdą ir maitinimą per koaksialinį kabelį

SKU: DVRDS7216HQHI-K2/P Category: 16 kanalų DVR

Vaizdo suspaudimas	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Kodavimo raiška	When 1080p lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF,When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF,
Bitų greitis	Main stream:,When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p @15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N),
Vaizdo bitų greitis	32 Kbps to 6 Mbps
Dvigubas srautas	Support
Srauto tipas	Video, Video & Audio
Vaizdo suspaudimas	G.711u
Garso bit7 greitis	64 Kbps
IP vaizdo įvestis	8-ch (up to 24-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
Analoginė vaizdo įvestis	16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD įvestis	4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI įvestis	1080p25, 1080p30, 720p25, 720p30
CVBS įvestis	PAL/NTSC
Garso įvestis	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Garso išvestis	1-ch, RCA (Linear, 1 KΩ)
Dvigubas garso apsikeitimas	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Sinchroninis atkūrimas	16-ch
HDTVI įvestis	4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 *: The 3 MP signal input is only available for channel 1 of DS-7204HQHI-K1/P, channel 1/2 of DS-7208HQHI-K2/P, and channel 1/2/3/4 of DS-7216HQHI-K2/P.
VGA/HDMI išvestis	VGA: 1-ch, ,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz,HDMI: 1-ch, ,4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, ,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz,
PoC kameros įvestis	Support Hikvision PoC camera *: PoC access capability see Appendix.
CVBS išvestis	1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480
Nuotolinis prisijungimas	128
Tinklo protokolai	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Tinklo sąsajos	1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
SATA	2 SATA interfaces
Talpa	Up to 10 TB capacity for each disk
Pavojaus signalo įvestis/išvestis	N/A
USB sąsaja	Front panel: 1 × USB 2.0 ,Rear panel: 1 × USB 3.0
Serijinė sąsaja	RS-485 (half-duplex)
Maitinimas	48 VDC
Darbo temperatūra	-10 °C to +55 °C (+14 °F to +131 °F)
Darbo drėgmė	10% to 90%
Matmenys (P × G × A)	380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Svoris (be HDD)	≤ 2 kg (4.4 lb)
Suvartojimas (be HDD)	≤ 120 W
