Kamera
Sensorius	1/2.7″ Progressive Scan CMOS
Min. pašvietimas	Color: 0.005 Lux @ (F1.6, AGC ON)
Užrakto greitis	1/3 s to 1/100,000 s
Diena / naktis	ICR Cut
Reguliavimo kampas	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lėtas užraktas	Yes
P/N	P/N
WDR	120 dB
Objektyvas
Ojektyvas ir matymo kampas	2.8 mm, horizontal FOV 101°, vertical FOV 55°, diagonal FOV 119° 4 mm, horizontal FOV 82°, vertical FOV 44°, diagonal FOV 97°
Apertura	F1.6
Objektyvo tvirtinimas	M12
Apertūros tipas	Fixed
Pašvietimas
IR atstumas	Up to 30 m
Bangos ilgis	850 nm
Išmanus papildomas pašvietimas	Yes
Video
Raiška	2560 × 1440
Pagrindinis srautas	50Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas	50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
Video suspaudimas	Main Stream: H.265/H.264 Sub-Stream: H.265/H.264
Video Bit dažnis	32 Kbps to 8 Mbps
H.264	Baseline Profile/Main Profile/High Profile
H.265	Main Profile
Audio
Aplinkos triukšmo filtravimas	-S: Yes
Garso dažnis	-S: 8 kHz/16 kHz
Audio suspaudimas	-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit dažnis	-S: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/ 8-320Kbps(MP3)
Tinklas
Vienalaikė peržiūra	Up to 6 channels
API	ISAPI, SDK
Protokolai	TCP/IP, ICMP, DHCP, DNS, DDNS ,HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
Vartotojai	Up to 32 users. 3 user levels: administrator, operator and user
Apsauga	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Tinklinis talpinimas	MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Klientas	iVMS-4200, Hik-Connect, Hik-Central
Naršyklė	Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Aliarmas	Motion detection, exception
Wi-FI
Kodavimas	64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi protokolai	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Dažnio diapazonas	2.412 GHz – 2.472 GHz
Kanalų bangos ilgis	20/40MHz
Moduliacija	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Wi-fi atstumas	Up to 120 m (The performance varies based on actual environment)
Perdavimo greitis	300 Mbps
Vaizdas
Diena / naktis perjungimas	Day, Night, Auto, Schedule
Vaizdo gerinimas	BLC, HLC, 3D DNR
Vaizdo nustatymai	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Sąsajos
Vidinė atmintis	Built-in micro SD slot, up to 256 GB
Perkrovimas	Yes
Ryšio sąsaja	1 RJ45 10M/100M self-adaptive Ethernet port
Tradicinis algoritmas
Pagrindiniai įvykiai	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Gylusis mokymasis
Saugojimas	Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Bendriniai
Laikymo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbinės sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Maitinimas	12 VDC ± 25%, reverse polarity protection PoE: 802.3af, class 3
Energijos sąnaudos	12 VDC, 0.6 A, max. 7 W
Maitinimo sąsaja	Ø5.5 mm coaxial power plug
Medžiaga	Polycarbonate cover, polycarbonate body
Matmenys	Ø126.0 × 96.1 mm (Ø5.0″ × 3.8″)
Pakuotės matmenys	170 × 170 × 150 mm (7.0″ × 7.0″ × 5.9″)
Svoris	Approx. 590 g (1.3 lb.)
Svoris su pakuote	Approx. 989 g (2.2 lb.)
Apjungimo būdai	Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audible warning
Kalbos	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Programos perkrovimas	Yes
Patvirtinimai
EMC	FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
RF	FCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Weight

0.913 kg

Gamintojas

Hikvision

Naujiena

Click to enlarge

Back to products

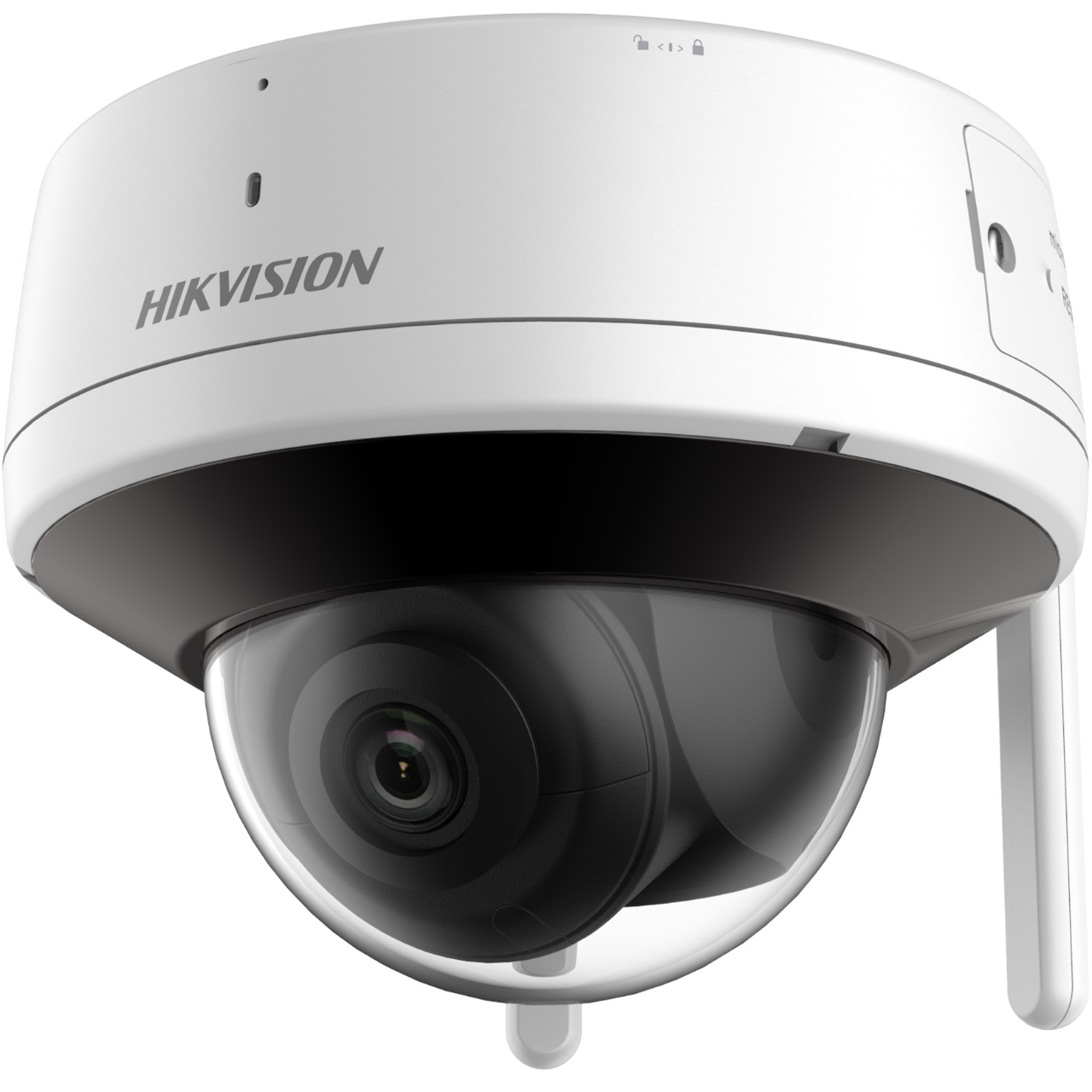

Hikvision DS-2CV2146G0-IDW F2.8

€237.50

4 MP IP kamera
Acusense technologija
120dB WDR
Wi-Fi iki 120m
H.265+
4mm
IR iki 30m
IP66
IK10

Palyginti

Į norų sąrašą

SKU: KIPDS2CV2146G0IDWF2.8 Category: Dome kameros

Description
Additional information

Description

Kamera
Sensorius	1/2.7″ Progressive Scan CMOS
Min. pašvietimas	Color: 0.005 Lux @ (F1.6, AGC ON)
Užrakto greitis	1/3 s to 1/100,000 s
Diena / naktis	ICR Cut
Reguliavimo kampas	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lėtas užraktas	Yes
P/N	P/N
WDR	120 dB
Objektyvas
Ojektyvas ir matymo kampas	2.8 mm, horizontal FOV 101°, vertical FOV 55°, diagonal FOV 119° 4 mm, horizontal FOV 82°, vertical FOV 44°, diagonal FOV 97°
Apertura	F1.6
Objektyvo tvirtinimas	M12
Apertūros tipas	Fixed
Pašvietimas
IR atstumas	Up to 30 m
Bangos ilgis	850 nm
Išmanus papildomas pašvietimas	Yes
Video
Raiška	2560 × 1440
Pagrindinis srautas	50Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas	50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
Video suspaudimas	Main Stream: H.265/H.264 Sub-Stream: H.265/H.264
Video Bit dažnis	32 Kbps to 8 Mbps
H.264	Baseline Profile/Main Profile/High Profile
H.265	Main Profile
Audio
Aplinkos triukšmo filtravimas	-S: Yes
Garso dažnis	-S: 8 kHz/16 kHz
Audio suspaudimas	-S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3
Audio Bit dažnis	-S: 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/ 8-320Kbps(MP3)
Tinklas
Vienalaikė peržiūra	Up to 6 channels
API	ISAPI, SDK
Protokolai	TCP/IP, ICMP, DHCP, DNS, DDNS ,HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
Vartotojai	Up to 32 users. 3 user levels: administrator, operator and user
Apsauga	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
Tinklinis talpinimas	MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Klientas	iVMS-4200, Hik-Connect, Hik-Central
Naršyklė	Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Aliarmas	Motion detection, exception
Wi-FI
Kodavimas	64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Wi-Fi protokolai	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Dažnio diapazonas	2.412 GHz – 2.472 GHz
Kanalų bangos ilgis	20/40MHz
Moduliacija	802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Wi-fi atstumas	Up to 120 m (The performance varies based on actual environment)
Perdavimo greitis	300 Mbps
Vaizdas
Diena / naktis perjungimas	Day, Night, Auto, Schedule
Vaizdo gerinimas	BLC, HLC, 3D DNR
Vaizdo nustatymai	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Sąsajos
Vidinė atmintis	Built-in micro SD slot, up to 256 GB
Perkrovimas	Yes
Ryšio sąsaja	1 RJ45 10M/100M self-adaptive Ethernet port
Tradicinis algoritmas
Pagrindiniai įvykiai	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Gylusis mokymasis
Saugojimas	Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Bendriniai
Laikymo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbinės sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Maitinimas	12 VDC ± 25%, reverse polarity protection PoE: 802.3af, class 3
Energijos sąnaudos	12 VDC, 0.6 A, max. 7 W
Maitinimo sąsaja	Ø5.5 mm coaxial power plug
Medžiaga	Polycarbonate cover, polycarbonate body
Matmenys	Ø126.0 × 96.1 mm (Ø5.0″ × 3.8″)
Pakuotės matmenys	170 × 170 × 150 mm (7.0″ × 7.0″ × 5.9″)
Svoris	Approx. 590 g (1.3 lb.)
Svoris su pakuote	Approx. 989 g (2.2 lb.)
Apjungimo būdai	Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, audible warning
Kalbos	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Programos perkrovimas	Yes
Patvirtinimai
EMC	FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
RF	FCC ID (FCC Part 15.247(BT or 2.4G)); IC ID (RSS-247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)); WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014); KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17); ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
