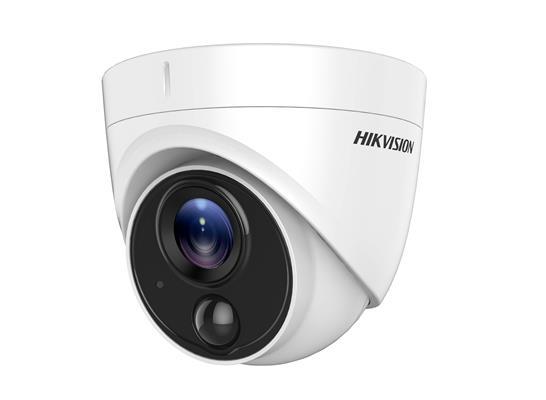

Hikvision DS-2CE71D8T-PIRL F2.8

Camera

Image Sensor

2.0 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

Resolution

1920 (H) × 1080 (V)

Min. illumination

Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max. 16 times

Lens

2.8 mm, 3.6 mm fixed focal lens

Horizontal Field of View

103.5° (2.8 mm), 82.6° (3.6 mm)

Lens Mount

M12

Visual Alarm

Yes

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°

Synchronization

Internal synchronization

WDR (Wide Dynamic Range)

> 120 dB

Menu

White Light

Alarm/Off

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

ATW/MANUAL

Privacy Mask

ON/OFF, 4 programmable privacy masks

Motion Detection

4 programmable motion areas

Backlight Compensation

WDR/BLC/OFF

3D DNR (Digital Noise Reduction)

Level 1 to 10

Language

English, Chinese

Functions

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

1 HD analog output

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

Power Consumption

Max. 4.5 W

Ingress Protection

IP67

Material

Enclosure: Plastic Main body: Metal Mounting base: Plastic

IR Range

Up to 20 m

PIR Range

Angle: 110°, Range:11 m

Communication

Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions

Ø 109.8 mm × 89.75 mm (Ø 4.32″ × 3.53″ )

Weight

Approx. 310 g (0.68 lb.)
