| Kamera | ||
|---|---|---|
| Vaizdo sensorius: | 1/3″ Progressive Scan CMOS | |
| Min. Apšvietimas: | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on | |
| Užsisklendimo greitis: | 1/3 s to 1/100,000 s | |
| Lėtas užsisklendimas: | Yes | |
| P/N: | P/N | |
| Platus dinaminis diapozonas: | 120 Db | |
| Diena & Naktis: | ICR cut | |
| Kampo nustatymai: | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° | |
| Lęšiai | ||
| Lęšių tipai & FOV: | 2.8 to 12 mm, horizontal FOV 95.8° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.6° to 33.4° | |
| Diafragma: | F1.6 | |
| Lęšių montavimas: | φ14 | |
| DORI | ||
| DORI: | 2.8 to 12 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m | |
| Apšvietimas | ||
| IR Apšvietimas: | Up to 40m | |
| Bangų ilgis: | 850nm | |
| Vaizdas | ||
| Maks. raiška: | 2688 × 1520 | |
| Pagrindinis Srautas: | 50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | |
| Pagalbinis Srautas: | 50Hz: 25 fps (640 × 480, 640 × 360) 60Hz: 30 fps (640 × 480, 640 × 360) | |
| Tretinis Srautas: | 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) | |
| Vaizdo suspaudimas: | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 | |
| Vaizdo bitų greitis: | 32 Kbps to 8 Mbps | |
| H.264 tipas: | Baseline Profile/Main Profile/High Profile | |
| H.265 tipas: | Main Profile | |
| H. 264+: | Main stream supports | |
| H. 265+: | Main stream supports | |
| SVC: | Yes | |
| ROI: | 1 fixed region for main stream and sub-stream | |
| Garsas | ||
| Aplinkos triukšmo filtravimas: | Yes | |
| Garso pavyzdžių dažnis: | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz | |
| Garso suspaudimas: | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC | |
| Garso bitų greitis: | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC) /32-192Kbps(MP2L2)/8-320Kbps(MP3) | |
| Tinklas | ||
| Tiesioginis vaizdo stebėjimas: | Up to 6 channels | |
| API: | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK | |
| Protokolai: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE | |
| Vartotojas/Transliuotojas: | Up to 32 users. 3 user levels: administrator, operator and user | |
| Saugumas: | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface | |
| Tinklo talpyla: | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) | |
| Klientas: | iVMS-4200, Hik-Connect, Hik-Central | |
| Interneto naršyklės: | Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ | |
| Vaizdas | ||
| Dienos/Nakties jungiklis: | Day, Night, Auto, Schedule | |
| Linijų kirtimo aptikimas: | BLC, HLC, 3D DNR | |
| Vaizdo nustatymų keitimas: | Yes | |
| Vaizdo nustatymai: | Rotate, mirror, privacy masks, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser | |
| Sąsaja | ||
| Garsas: | -S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium | |
| Signalizacija: | -S: 1 input, 1 output (max. 12 VDC, 30 mA) | |
| Talpykla: | Built-in micro SD, up to 256 GB | |
| Techninės įrangos atstatymas: | Yes | |
| Bendravimo Sąsaja: | 1 RJ45 10M/100M self-adaptive Ethernet port | |
| Išmaniosios savybės | ||
| Paprastos funkcijos: | Motion detection (human and vehicle), video tampering alarm, exception | |
| Išmanios funkcijos: | Line crossing detection, intrusion detection | |
| Veido atpažinimas: | Yes | |
| Pagrindinis | ||
| Sujungimo metodai: | Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, Email | |
| Meniu kalbos: | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian | |
| Pagrindinės funkcijos: | Anti-flicker, heartbeat, password reset via e-mail, pixel counter | |
| Laikymo sąlygos: | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| Paleidimo ir veikimo sąlygos: | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) | |
| Energijos šaltinis: | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 | |
| Energijos suvartojimas ir galia: | 12 VDC, 0.88 A, max. 10.5 W PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W | |
| Energijos jungiklis: | Ø5.5 mm coaxial power plug | |
| Medžiaga: | Upper cover and base: metal Bubble: plastic | |
| Kameros matmenys: | Ø153.3 × 111.6 mm (Ø6.1″ × 4.4″) | |
| Pakuotės matmenys: | 244 × 174 × 173 mm (9.7″ × 6.9″ × 6.9″) | |
| Kameros svoris: | Approx. 880 g (1.9 lb.) | |
| Svoris su pakuote: | Approx. 1419 g (3.1 lb.) | |
| Patvirtinimai | ||
| EMC: | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) | |
| Saugumas: | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) | |
| Aplinkosauga: | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) | |
| Atsparumas vandeniui ir dulkėms: | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) | |
Naujiena

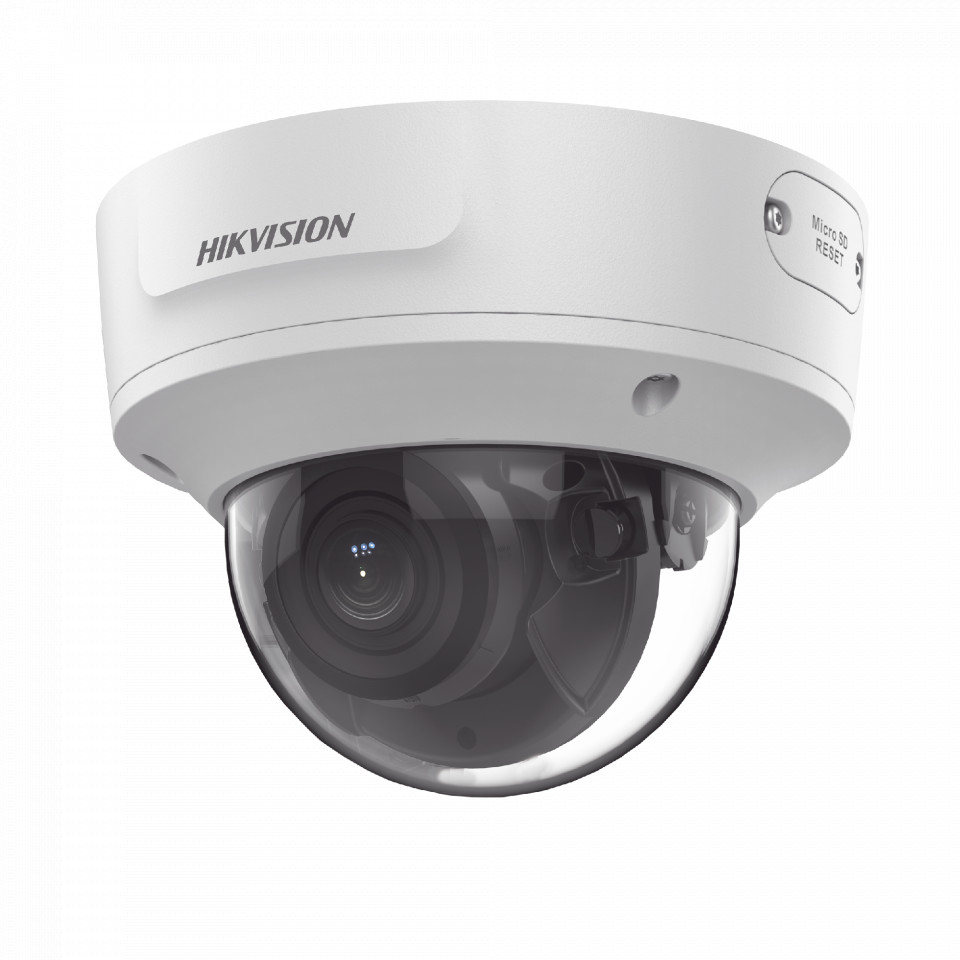

Hikvision dome DS-2CD2743G2-IZS
€429.82
- 4MP IP Dome kamera
- 120dB WDR
- H.265+/H.264+
- 2.8-12mm motorizuotas obj.
- IR apšvietimas iki 40m
- Garso IN/OUT
- IP67
- IK10
- Judesio detektoriai 2.0
Description
Additional information
| Weight | 1.33 kg |
|---|---|
| Gamintojas |
