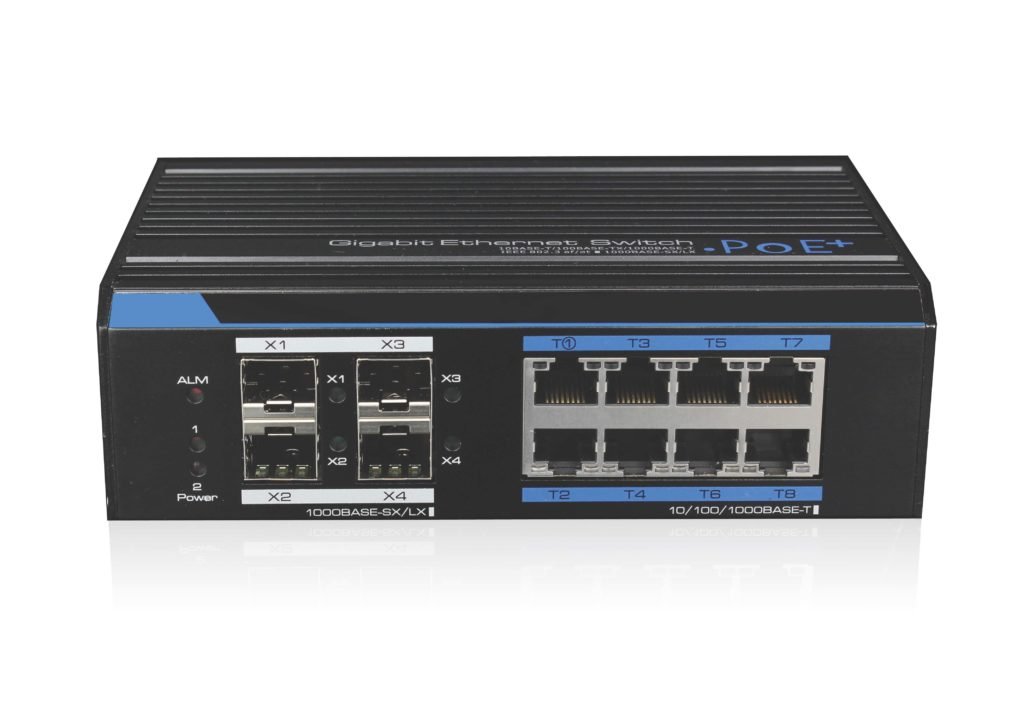

8 prievadų, 8 PoE prievadų pramoninis komotatorius UTEPO UTP7308GE-POE(Microsemi MS60)

Modelis

UTP7308GE-POE(MS60)

Downlink prievadai

8* 10/100/1000Base-T PoE RJ45 ports

Uplink prievadai

4*1000Base-X SFP slots

Konsolės prievadas

1*RJ45-RS232 serial port(115200,8,N,1)

Init raktas

Short press:Restart;

>5s restore factory settings

Standartai ir protokolai

IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1p, IEEE 802.1x IEC61000-4-5 IEC61000-4-2 IEC61000-4-4

Perkėlimo pajėgumas

24Gbps

Paketų perkėlimo greitis

18Mpps

Perkėlimo rėžimai

Store and Forward

Paketų buferis

4Mbit

MAC adresų lentelė

8K

Jumbo kadras

10K bytes

PoE standartas

802.3af/at

PoE galios metodas

End-span

PoE linijų poros

1/2(+)，3/6(-)

PoE energijos

Microsemi PSE solution:Port T1 60W HPoE，Port T2~T8 are standard PoE(30W)

Alarm signalo išvestis

Support relay alarm for power off, ports network link-off , ports PoE off （Set by Web Software）

Atsparumas įtampai

6KV Per: IEC61000-4-5

ESD atsparumas

ESD Level 4 Per: IEC61000-4-2

EFT Level 4 Per: IEC61000-4-4

Įvesties įtampa

48~57V DC

Energijos suvartojimas

Self consumption＜30W

Darbinė temperatūra

-40℃~75℃

Laikymo temperatūra

-40℃~85℃

Atsparumas drėgmei

5%-95%（No- condensation）

Matmenys(LxWxH)

159mm×110mm×46.5mm

Svoris

750g

MTBF

330000 Hour

Certifikatai

CE, FCC, ROHS

Programinės įrangos funkcijos

Prievadų valdymas

Support Port Enable/Disable;

Support Port Rate Settings;

Support Port Full-duplex Mode;

Support IEEE802.3x Flow Control;

Support Port Name Change;

VLAN

Support 4K VLAN

Support 802.1Q Protocol-Based VLAN;

Support Port-Based VLAN;

QoS

Support QoS;

Support 8-Level Priority management for switching;

Support WRR;

Support 820.1P and DSCP Priority;

Daugiaadresio transliavimo valdymas

Support SNMP V1/V2/V3 Protocol;

Support IGMP Snooping;

POE valdymas

Support Total Power Consumption Control;

Support PoE ON/OFF;

Support Single Port 60W max. Power Change and Port Output Priority;

Alarm signalo išvestis

Support relay alarm for power off, ports network link-off , ports PoE off

Apsauga

Support IP, MAC, Port, VLAN Combination and Binding;

Support MAC address auto-learning, aging& filter;

Support Port Isolation, Port Speed-Limited;

Support RSTP;

Support Fast-Ring;

Support 5 groups of 8-Port trunk;

Support RADIUS Authentication& 802.1X Authentication;

Sistemos valdymas& priežiura

Support WEB Management, CLR Settings and telnet Settings;

Support CLR Settings;

Support FTP/TFTP/HTTP Web Upgrading;

Support Flow Calculate;

Support MAC address Form Search;

Support IP Address, DNS Server Change

Support Username& Password Change;

Support History Record, Journal management;

Support System settings Backup;
