Model |
UTP7208E-PoE-A1 |
|
Downstream Ports |
8* 10/100Base-TX |
|
Uplink Ports |
1*1000Mbps SFP Port and 1*10/100/1000Base-T |
|
Network Standard |
IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、EEE802.3 X |
|
Switch Capacity |
5.6Gbps |
|
Throughput |
4Mpps |
|
Switch Processing Scheme |
Store and Forward |
|
Memory Buffer |
1M |
|
MAC Table |
8K |
|
PoE Standard |
802.3af/at |
|
PsE Type |
End-span |
|
Power Pin Assignment |
1/2(+)，3/6(-) |
|
PoE Power Output |
44~57V DC , 30 watts max |
|
PoE Budge |
150 watts max |
|
Lightning protection |
6KV Execute：IEC61000-4-5 |
|
ESD |
6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2 |
|
Power Supply |
DC 48~57V |
|
Power Dissipation |
＜6W |
|
Work temperature |
-40℃~75℃ |
|
Storage temperature |
-40℃~85℃ |
|
Humidity(Non-condensin) |
5%-95% |
|
Dimension（L×W×H） |
159mm×110mm×46mm |
|
Weight |
530g |
|
Regulator |
CE、FCC、ROHS |
IšparduodaNaujiena

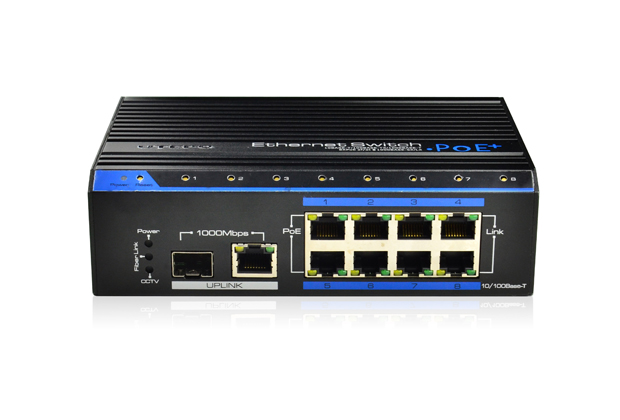

8 prievadų, 8 PoE pramoninis komutatorius UTEPO UTP7208E-POE-A1
€252.62
- 1 uplink ethernet jungtis
- 1 uplink optinė jungtis (1000Mbps)
- 8*10/100Mbps PoE ethernet jungtys
- Sukurtas specialiai aukštos raiškos IP kamerų jungimui į tinklus
Description
Additional information
| Weight | 1.053 kg |
|---|---|
