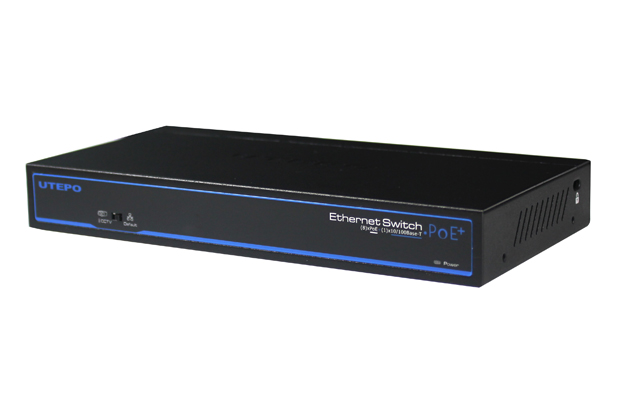

8 prievadų, 8 PoE komutatorius UTEPO UTP3-SW08-TP120

Power Supply

Power Adaptor

Voltage Range

DC 48V～54V

Power Consumption

<5W

Speed

1~8 port: Default: 10/100Mbps; CCTV: 10Mbps; UPLINK: 100Mbps

Transmission Distance

1~8 Ports: 0～100m (Default),CCTV: 0-250m,Uplink: 0-100m

Ethernet Standard

IEEE 802.3/802.3u/IEEE802.3 af/IEEE802.3at

Exchange Capacity

1.8Gbps

Packet Forwarding Rate

1.34 Mbps

MAC

2K

Power Light

1pcs (Red)

Ethernet Port Light

2pcs (Yellow& Green) on RJ45, Yellow Indicates PoE, Green Indicates Link/Act

Surveillance Mode light

1pcs(Green), Green Indicates CCTV Mode is initiated

ESD

Level 3   Per: IEC6 1 000-4-2

Operation Temperature

-10℃～55℃

Storage Temperature

-40℃～85℃

Humidity(non-condensing)

0～95%

Dimensions(LxWxH)

200mm×101.8mm×27mm

Color

Black

Weight

500g
