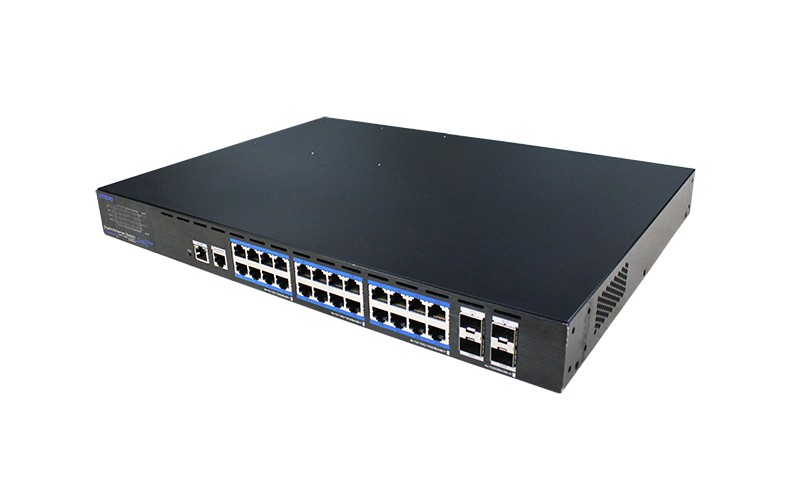

- Techninės įrangos specifikacijos
- Downlink prievadai24*10/100/1000Base-T PoE++ RJ-45 (Auto-MDI/MDI-X)
- Uplink prievadai4*1000Base-X SFP
- Kosolės prievadai1*RJ-45 console port
- OOB prievadai1*100Base-TX RJ-45 port
- Init mygtukasShort press to restart the switch, long press ＞5s to initialize the system
- LED indikatoriai2*Power Indicators, 1*System Indicator, 1*Alarm Indicator 24*Downlink Port Link Indicators, 24*Downlink Port PoE Indicators, 4*Uplink Port Link Indicator
- KabelisCat5e or better
- Dydis (W*D*H)442*320*44mm
- SvorisStandard with 1 AC power module: 5kg, AC module: 1 kg, DC module: 0.3kg
- Įėjimo įtampaAC+AC Redundant power supply, both pluggable 1 AC power module comes standard, another one needs to be purchased separately AC1: 100~127V 50~60Hz 13A max, Rated output power: 1000W max 200~240V 50~60Hz 10A max, Rated output power: 2000W max AC2: 100~127V 50~60Hz 13A max, Rated output power: 1000W max 200~240V 50~60Hz 10A max, Rated output power: 2000W max
- Energijos sunaudojimas ≤30W（not include PoE)
- MontavimasRack-mounted/wall-mounted
- MedžiagaMetal shell
- Komutatoriaus parametrai
- Objekto temperatūros diapazonasStore and Forward
- Komutatoriaus galia 56Gbps / non-blocking
- Paketų persiuntimo greitis 41.7Mpps
- MAC lentelė 16k, supported auto learning
- Paketų buferis 12Mbit
- Jumbo rėmas 9kB
- PoE
- PoE prietaisasEndpoint PSE (Power Sourcing Equipment)
- PoE standartasIEEE 802.3af/at /bt
- PoE jungčių standartas1/2(-), 3/6(+), 4/5 (+), 7/8 (-)
- PoE galios išvestis54V DC
- PoE galia prievadui390W max for each port, 1900W for whole switch
- Standartai
- Standartai IEEE 802.1p Priority Queuing IEEE 802.1Q VLAN tagging IEEE 802.1D Spanning Tree Algorithm IEEE 802.1w Rapid Spanning Tree IEEE 802.1x Authentication IEEE 802.3ad Link Aggregation IEEE 802.3x Flow Control IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3z Gigabit Ethernet IEEE 802.3af Power Over Ethernet IEEE 802.3at Power Over Ethernet IEEE 802.3bt Power Over Ethernet
- EMC
- EMC FCC 47 CFR Part 15 Class A EN55032 Class A IEC61000-4-2，Level 3: Contact Discharge: ±6kV，Air Discharge: ±8kV IEC61000-4-3，Level 2: 3V/m IEC61000-4-4，Level 2: 1kV IEC61000-4-5，line to earth: 6kV IEC61000-4-6，Level 2 (0.15MHz~80MHz)
- LVD
- LVD EN 62368-1:2014 EN 62328-A11:2017
- Aplinkos veiksniai
- Darbo sąlygos Temperature: -5~45℃ Relative Humidity: 5%~95% (Non-condensation)
- Sandėliavimo sąlygos Temperature: -40℃~85℃ Relative Humidity: 5%~95% (Non-condensation)
- Patvirtinimai
- PatvirtinimaiCE, FCC
